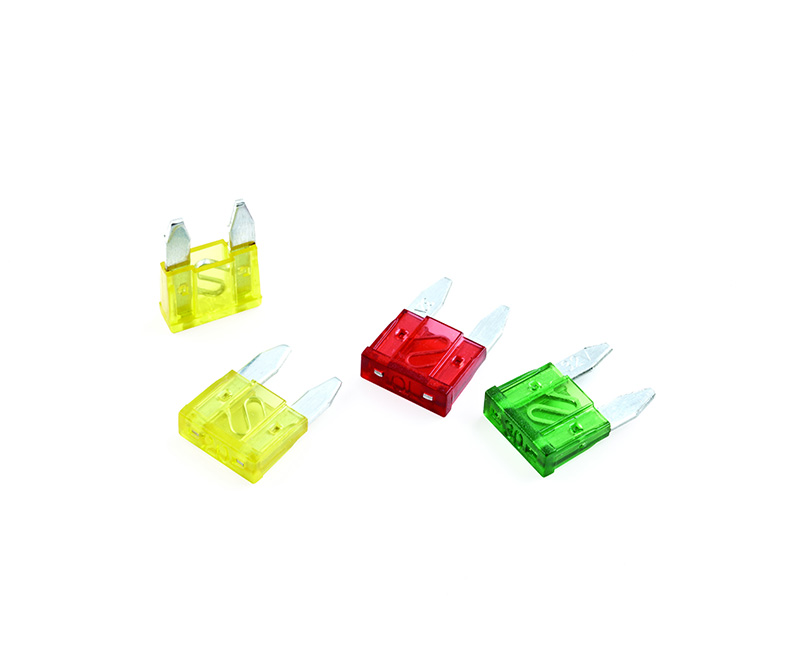

Designed and produced by XC Electronics, the blade fuses for autornotive industry is mainly used to protect equipment circuit lower than 32V.
● Design standard: Automotive industry Autofuse standard of Republic of China, OC/T420-2004
● Product Classification:
A: Mini type (F type) blade fuse (fast acting)
B: Medium type (C type) blade fuse (fast acting)
C: Maximum type (E type) blade fuse (slow-blow)
● Materials: PC resistance burnt material/ alloy terminal electrode.
● Color-coding: Blade fuses are color-coded for easy amperage identification.
● Application: Suitable for auto lighting, auto guard against theft, UPS etc. Also applied to low voltage electronic products, little transformer, electric toy, charger and so on.
| Testing current | Blow Time | |
| Min | Max | |
| 110% | 100 hours | - |
| 135% | 0.75 s | 1800 s |
| 200% | 0.15 s | 5 s |
| 350% | 0.08 s | 0.25 s |
| Type | Current Rating | Voltage Rating | Colour | Cold Resistance mΩ | Minimum Heat of Fusion I²t(A²Sec) | Approvals |
 |
||||||
| C2000301Z | 2 | 32 | Gray | 55 | 6.2 | ○ |
| C3000301Z | 3 | 32 | Purple | 34 | 9.4 | ○ |
| C4000301Z |
4 |
32 | Pink | 24 | 17 | ○ |
| C5000301Z | 5 | 32 | Tan | 18 | 25 | ○ |
| C7500301Z | 7.5 | 32 | Coffee | 11 | 68 | ○ |
| C0010301Z | 10 | 32 | Red | 7.3 | 93 | ○ |
| C0015301Z | 15 | 32 | Blue | 4.5 | 270 | ○ |
| C0020301Z | 20 | 32 | Yellow | 3.2 | 380 | ○ |
| C0025301Z | 25 | 32 | Natural | 2.3 | 625 | ○ |
| C0030301Z | 30 | 32 | Green | 1.8 | 1130 | ○ |
