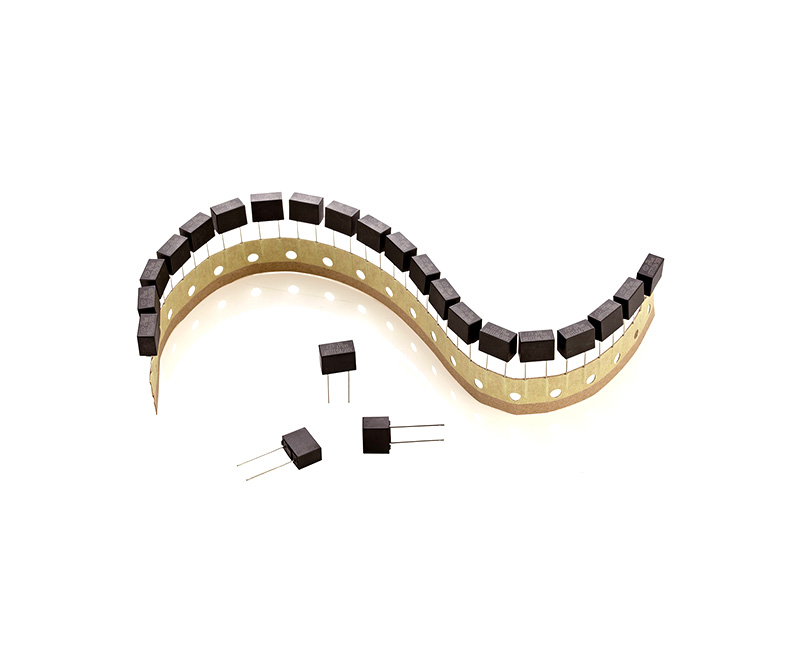

4TE_Axial Radial Thru Hole Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity

Material

Operating Temperature

Soldering conditions

VDE 100A at 250V/300V AC(100mA-10A)

Fuse body - Plastic

Element -- Alloy

Pigtail -- tin plated copper

-40°C~+125°C

Wave solder: 260°C, ≤5s

Hand solder: 360°C, ≤1s

UL 100A at 125V/250V/300V/350V AC(80mA-10A)

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
80mA	125V/250V/300V/350V	0.020			●
100mA	125V/250V/300V/350V	0.029	○	○	●
125mA	125V/250V/300V/350V	0.047	○	○	●		○
160mA	125V/250V/300V/350V	0.091	○	○	●		○
200mA	125V/250V/300V/350V	0.127	○	○	●		○
250mA	125V/250V/300V/350V	0.225	○	○	●		○
300mA	125V/250V/300V/350V	0.364			●
315mA	125V/250V/300V/350V	0.450	○	○	●		○
350mA	125V/250V/300V/350V	0.517			●
400mA	125V/250V/300V/350V	0.617	○	○	●		○
500mA	125V/250V/300V/350V	1.116	○	○	●		○
600mA	125V/250V/300V/350V	1.235			●
630mA	125V/250V/300V/350V	1.757	○	○	●		○
750mA	125V/250V/300V/350V	2.431			●
800mA	125V/250V/300V/350V	2.519	○	○	●		○
1A	125V/250V/300V/350V	5.073	○	○	●	○	○
1.25A	125V/250V/300V/350V	8.419	○	○	●	○	○
1.5A	125V/250V/300V/350V	13.25			●	○
1.6A	125V/250V/300V/350V	16.12	○	○	●	○	○
2A	125V/250V/300V/350V	25.32	○	○	●	○	○
2.5A	125V/250V/300V/350V	37.08	○	○	●	○	○
3A	125V/250V/300V/350V	45.74			●	○
3.15A	125V/250V/300V/350V	60.04	○	○	●	○	○
4A	125V/250V/300V/350V	98.65	○	○	●	○	○
5A	125V/250V/300V/350V	145.69	○	○	●	○	○
6A	125V/250V/300V/350V	163.25			●	○
6.3A	125V/250V/300V/350V	205.63	○	○	●	○	○
7A	125V/250V/300V/350V	192.13			●	○
8A	125V/250V/300V/350V	310.92	○	○	●	○	○
10A	125V/250V/300V/350V	396.95	○	○	●	○	○

4TE
