6H_Cartridge Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Parameter

Breaking Capacity

Material

Operating Temperature

Soldering conditions

1500A at 125V/250V/300V/350V/400V/450V/500V AC(80mA-30A)

Fuse body - ceramic tube

End cap -- nickel plated brass

Pigtail -- tin plated copper on nickel plated brass cap

-40°C~+125°C

Wave solder: 260°C, ≤5s

Hand solder: 360°C, ≤1s

Electrical Characteristics

Testing current	Blow Time
Testing current	Min	Max
150%	1 hour	-
210%	1s	1800s
275%	250ms 750ms 750ms	20s(250mA-315mA) 80s(400mA-10A) 80s(12A-30A)
400%	50ms 95ms 150ms	2s(250mA-315mA) 3s(400mA-10A) 8s(12A-30A)
1000%	10ms 20ms 30ms	300ms(250mA-315mA) 300ms(400mA-10A) 300ms(12A-30A)

Approvals (○ Pending ● Approvals)
● Pending ○ Approvals

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
80mA	125V/250V/300V/400V/450V/500V	0.0039	○	○	○	●	●	○	○
100mA	125V/250V/300V/400V/450V/500V	0.0047	○	○	○	●	●	○	○
125mA	125V/250V/300V/400V/450V/500V	0.0075	○	○	○	●	●	○	○
160mA	125V/250V/300V/400V/450V/500V	0.0139	○	○	○	●	●	○	○
200mA	125V/250V/300V/400V/450V/500V	0.0187	○	○	○	●	●	○	○
250mA	125V/250V/300V/400V/450V/500V	0.0513	○	○	○	●	●	○	○
315mA	125V/250V/300V/400V/450V/500V	0.0824	○	○	○	●	●	○	○
400mA	125V/250V/300V/400V/450V/500V	0.131	○	○	○	●	●	○	○
500mA	125V/250V/300V/400V/450V/500V	0.210	○	○	○	●	●	○	○
630mA	125V/250V/300V/400V/450V/500V	0.777	○	○	○	●	●	○	○
800mA	125V/250V/300V/400V/450V/500V	1.392	○	○	○	●	●	○	○
1A	125V/250V/300V/400V/450V/500V	2.243	○	○	●	●	●	○	●
1.25A	125V/250V/300V/400V/450V/500V	3.204	○	○	●	●	●	○	●
1.6A	125V/250V/300V/400V/450V/500V	5.244	○	○	●	●	●	○	●
2A	125V/250V/300V/400V/450V/500V	10.829	○	○	●	●	●	○	●
2.5A	125V/250V/300V/400V/450V/500V	21.995	○	○	●	●	●	○	●
3.15A	125V/250V/300V/400V/450V/500V	34.456	○	○	●	●	●	○	●
4A	125V/250V/300V/400V/450V/500V	48.859	○	○	●	●	●	○	●
5A	125V/250V/300V/400V/450V/500V	75.687	○	○	●	●	●	○	●
6.3A	125V/250V/300V/400V/450V/500V	112.15	○	○	●	●	●	○	●
8A	125V/250V/300V/400V/450V/500V	184.96	○	○	●	●	●	○	●
10A	125V/250V/300V/400V/450V/500V	316.83	○	○	●	●	●	○	●
12A	125V/250V/300V/400V/450V/500V	600.75				●	●		●
12.5A	125V/250V/300V/400V/450V/500V	644.65	○	○	●	●	●	○	●
15A	125V/250V/300V/400V/450V/500V	954.73	○	○	●	●	●	○	●
16A	125V/250V/300V/400V/450V/500V	1215.22	○	○	●	●	●	○	●
20A	125V/250V/300V/400V/450V/500V	2088.47	○	○	●	●	●	○	●
25A	125V/250V/300V/400V/450V/500V	3599.86	○	○	●	●	●	○	●
30A	125V/250V/300V/400V/450V/500V	9389.59	○	○	●	●	●	○	●

Return

美高梅体育ios版

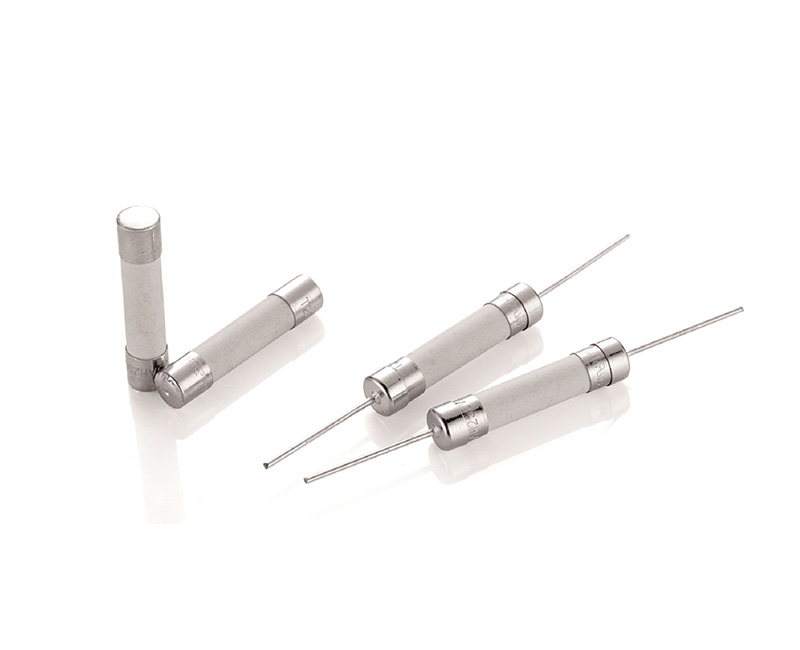

Cartridge Fuses
