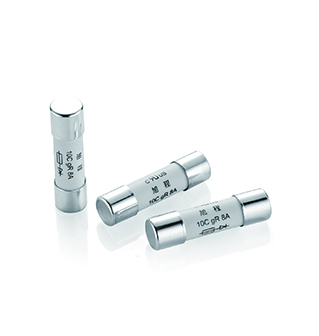

Fuse appearance.resettable surface mount fuse

05

2023-07

Share:

美高梅体育ios版

1. Filamentous. Early primitive fuses were directly locked with screws and used for various sizes of old-fashioned switches and sockets.

2. Flaky (bare flake). More convenient to use than traditional filiform.

3. Glass tube shaped. There are several different sizes, commonly found in electronic products.

6.3 x 32 mm (diameter x length)

5 x 20 mm

4. Ceramic tubular. There are several different shapes and sizes to avoid glass bursting.

5. Plastic sheet with metal sheet connector: automotive fuse.

6. Surface mounted component (SMD) type.

7. Cylindrical, plug-in type: directly soldered onto the circuit board, used internally in the product.
