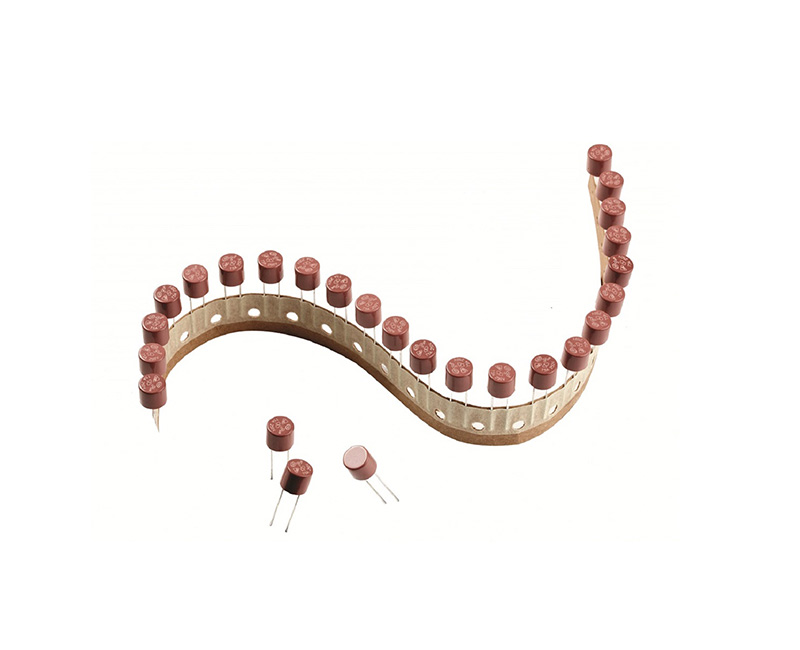

5TR_Axial Radial Thru Hole Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity

Material

Operating Temperature

Soldering conditions

VDE 100A at 250V/300V AC (250mA-6.3A)

Fuse body - Plastic

Element--Alloy

Pigtail--tin plated copper

-40°C~+125°C

Wave solder: 260°C, ≤5S

Hand solder: 360°C, ≤1S

UL 100A at 250V/300V/350V AC(250mA-20A)

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
80mA	125V/250V/300V/350V	0.026				●
100mA	125V/250V/300V/350V	0.035				●
125mA	125V/250V/300V/350V	0.056				●
160mA	125V/250V/300V/350V	0.092				●
200mA	125V/250V/300V/350V	0.163				●
250mA	125V/250V/300V/350V	0.255	●		●	●	●	●
300mA	125V/250V/300V/350V	0.421				●
315mA	125V/250V/300V/350V	0.603	●		●	●	●	●
350mA	125V/250V/300V/350V	0.615				●
400mA	125V/250V/300V/350V	0.679	●		●	●	●	●
500mA	125V/250V/300V/350V	1.179	●		●	●	●	●
600mA	125V/250V/300V/350V	1.428				●
630mA	125V/250V/300V/350V	1.831	●		●	●	●	●
750mA	125V/250V/300V/350V	2.517				●
800mA	125V/250V/300V/350V	3.608	●		●	●	●	●
1A	125V/250V/300V/350V	7.309	●		●	●	●	●
1.25A	125V/250V/300V/350V	12.77	●		●	●	●	●
1.5A	125V/250V/300V/350V	17.29				●
1.6A	125V/250V/300V/350V	20.64	●		●	●	●	●
2A	125V/250V/300V/350V	29.51	●		●	●	●	●
2.5	125V/250V/300V/350V	44.25	●		●	●	●	●
3A	125V/250V/300V/350V	52.36				●
3.15A	125V/250V/300V/350V	69.55	●		●	●	●	●
4A	125V/250V/300V/350V	112.20	●		●	●	●	●
5A	125V/250V/300V/350V	190.23		●	●	●	●	●
6A	125V/250V/300V/350V	235.15				●
6.3A	125V/250V/300V/350V	262.11		●	●	●	●	●
7A	125V/250V/300V/350V	315.95				●
8A	125V/250V/300V/350V	385.44			●	●
10A	125V/250V/300V/350V	609.78			●	●
12A	125V/250V/300V/350V	879.61				●
12.5A	125V/250V/300V/350V	956.35				●
15A	125V/250V/300V/350V	1366.02				●
20A	125V/250V/300V/350V	1910.70				●

5TR
