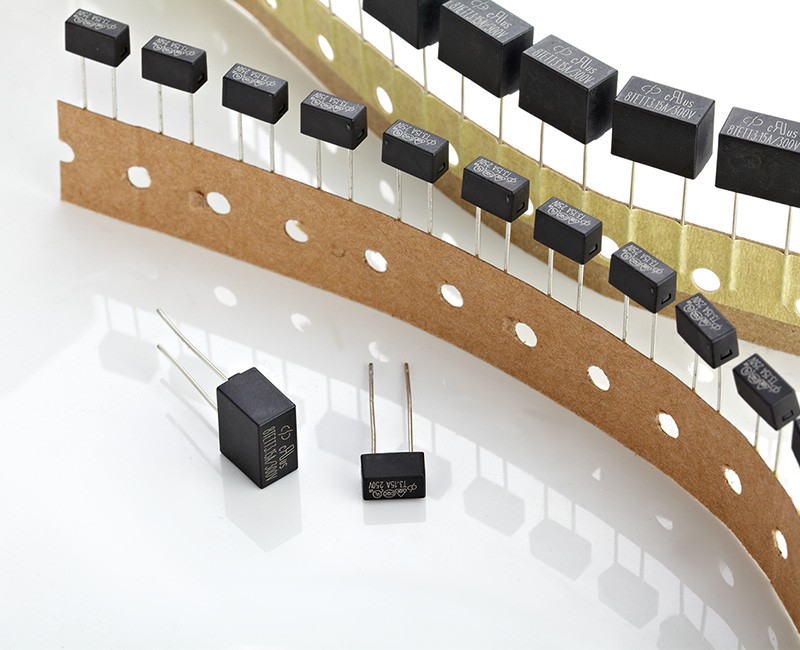

8TE_Axial Radial Thru Hole Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Parameter

Breaking Capacity

Material

Operating Temperature

Soldering conditions

VDE 100A at 250V/300V AC(100m -10A)

Fuse body - Plastic

Element -- Alloy

Pigtail -- tin plated copper

-40°C~+125°C

Wave solder: 260°C, ≤5s

Hand solder: 360°C, ≤1s

UL 200A at 125V1250V/300V/350V/400V AC(80mA-20A)

Electrical Characteristics

Amper Rating	Testing current	Blow Time
Amper Rating	Testing current	Min	Max
80mA~20A	125%	1 hour	-
80mA~20A	200%	1s	120s
80mA~20A	1000%	100ms	1s

Approvals (○ Pending ● Approvals)
● Pending ○ Approvals

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
80mA	125V/250V/300V/350V/400V	0.048			●
100mA	125V/250V/300V/350V/400V	0.087		●	●		●	●
125mA	125V/250V/300V/350V/400V	0.141	○	●	●	○	●	●
160mA	125V/250V/300V/350V/400V	0.246	○	●	●	○	●	●
200mA	125V/250V/300V/350V/400V	0.374	○	●	●	○	●	●
250mA	125V/250V/300V/350V/400V	0.567	○	●	●	○	●	●
300mA	125V/250V/300V/350V/400V	0.762			●	○
315mA	125V/250V/300V/350V/400V	0.966	○	●	●	○	●	●
350mA	125V/250V/300V/350V/400V	1.251	○	●	●	○
400mA	125V/250V/300V/350V/400V	1.746	○	●	●	○	●	●
500mA	125V/250V/300V/350V/400V	2.874	○	●	●	○	●	●
600mA	125V/250V/300V/350V/400V	3.415			●	○
630mA	125V/250V/300V/350V/400V	4.353	○	●	●	○	●	●
750mA	125V/250V/300V/350V/400V	6.741			●	○
800mA	125V/250V/300V/350V/400V	7.936	○	●	●	○	●	●
1A	125V/250V/300V/350V/400V	11.42	○	●	●	○	●	●
1.25A	125V/250V/300V/350V/400V	16.87	○	●	●	○	●	●
1.5A	125V/250V/300V/350V/400V	19.25			●	○
1.6A	125V/250V/300V/350V/400V	29.12	○	●	●	○	●	●
2A	125V/250V/300V/350V/400V	46.09	○	●	●	○	●	●
2.5A	125V/250V/300V/350V/400V	74.75	○	●	●	○	●	●
3A	125V/250V/300V/350V/400V	88.65			●	○
3.15A	125V/250V/300V/350V/400V	111.35	○	●	●	○	●	●
4A	125V/250V/300V/350V/400V	192.16	○	●	●	○	●	●
5A	125V/250V/300V/350V/400V	307.15	○	●	●	○	●	●
6A	125V/250V/300V/350V/400V	358.72			●	○
6.3A	125V/250V/300V/350V/400V	486.27	○	●	●	○	●	●
7A	125V/250V/300V/350V/400V	612.54			●	○
8A	125V/250V/300V/350V/400V	788.17	○	●	●	○	●	●
10A	125V/250V/300V/350V/400V	1226.33	○	●	●	○	●	●
12A	125V/250V/300V/350V/400V	1809.01			●	○
12.5A	125V/250V/300V/350V/400V	2356.87	○	○	●	○	○
15A	125V/250V/300V/350V/400V	3301.18			●
20A	125V/250V/300V/350V/400V	5554.67			●
