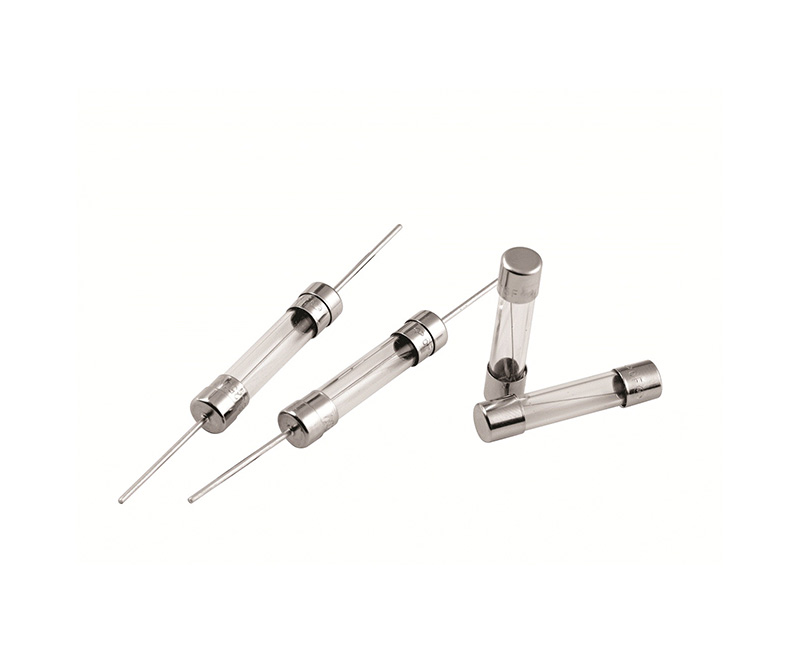

6F_Cartridge Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity

Material

Operating Temperature

Soldering conditions

35A or 10In whichever is greater

Fuse body - glass tube

End cap--nickel plated brass

Pigtail--tin plated copper on nickel plated brass cap

-40°C~+125°C

Wave solder: 260°C, ≤5S

Hand solder: 360°C, ≤1S

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
80mA	250V	0.0043	○	○	○	●	○
100mA	250V	0.0055	○	○	○	●	○
125mA	250V	0.0076	○	○	○	●	○
160mA	250V	0.0199	○	○	○	●	○
200mA	250V	0.0208	○	○	○	●	○
250mA	250V	0.0424	○	○	○	●	○
315mA	250V	0.0615	○	○	○	●	○
400mA	250V	0.0968	○	○	○	●	○
500mA	250V	0.111	○	○	○	●	○
630mA	250V	0.308	○	○	○	●	○
800mA	250V	0.747	○	○	○	●	○
1A	250V	2.005	○	○	○	●	○
1.25A	250V	2.579	○	○	○	●	○
1.6A	250V	3.855	○	○	○	●	○
2A	250V	6.261	○	○	○	●	○
2.5A	250V	9.213	○	○	○	●	○
3.15A	250V	20.488	○	○	○	●	○
4A	250V	30.075	○	○	○	●	○
5A	250V	51.73	○	○	○	●	○
6.3A	250V	81.09	○	○	○	●	○
8A	250V	137.78	○	●	○	●	○
10A	250V	198.34	○	●	○	●	○
12.5A	250V	309.63	○	●	○	●	○
15A	250V	409.88	○	○	○	●	○
16A	250V	507.33	○	●	○	●	○
20A	250V	817.66	○	○	○	●	○
25A	250V	890.68	○	○	○	●	○
30A	250V	950.21	○	○	○	●	○

6F
