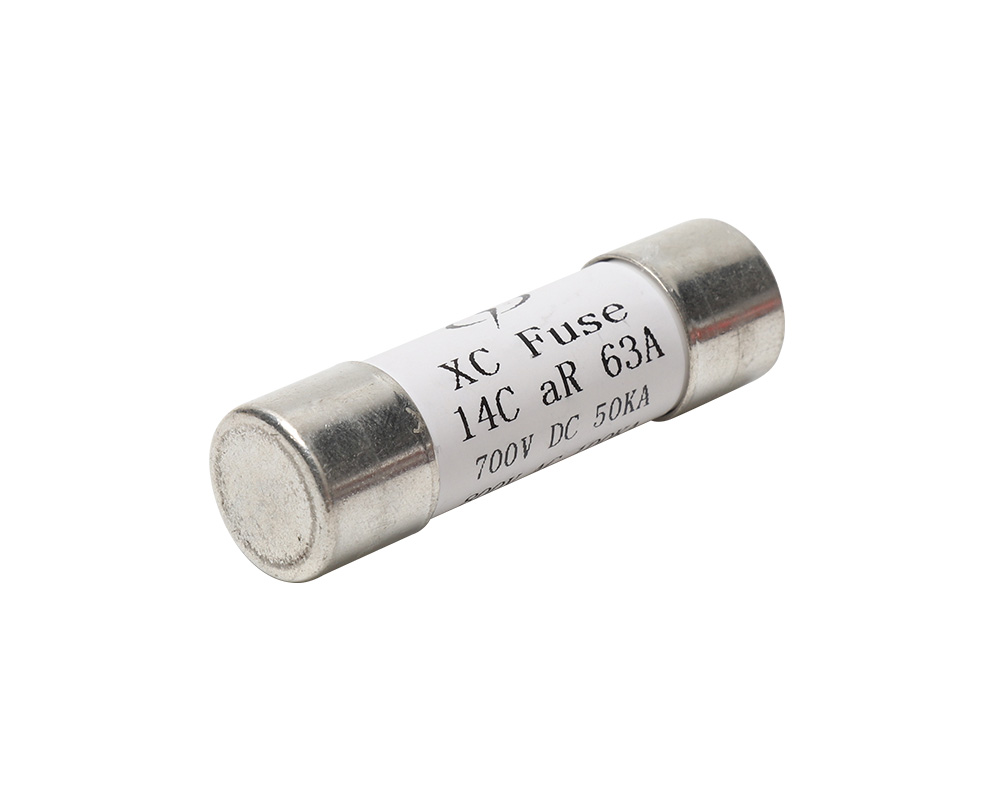

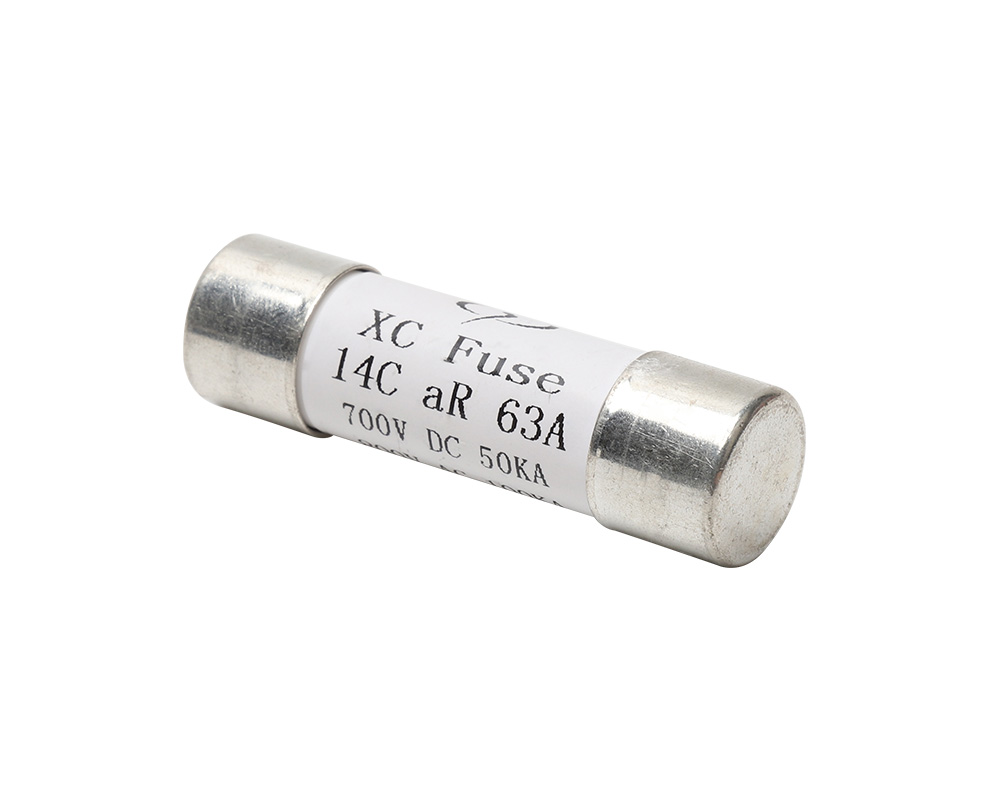

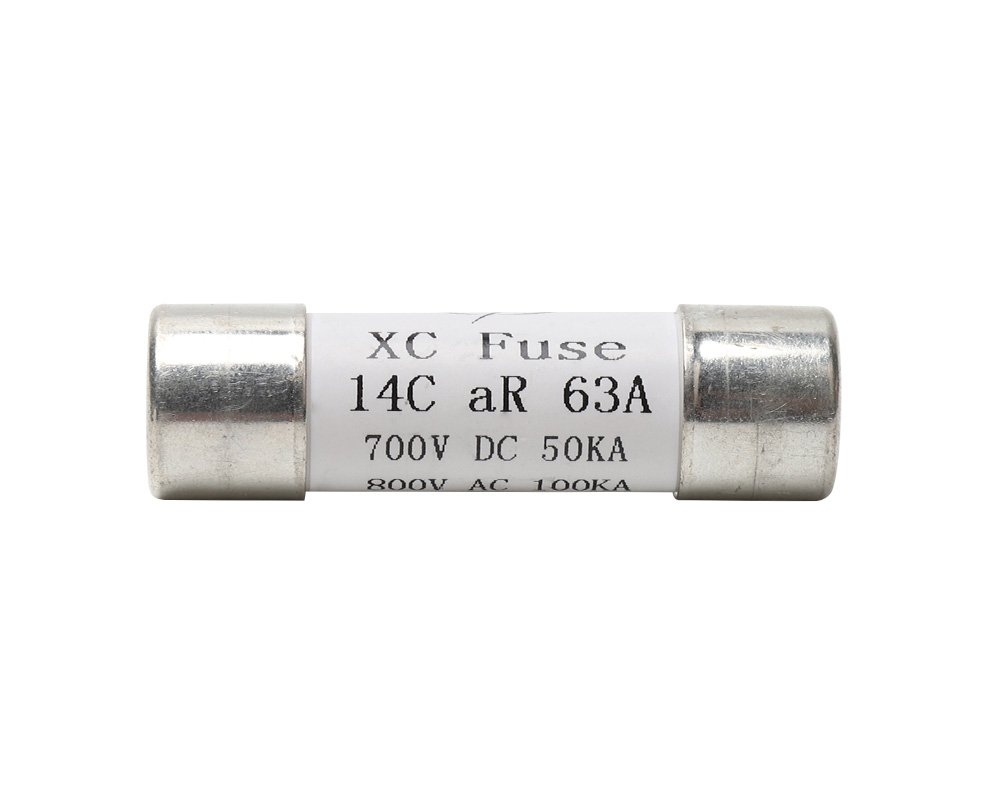

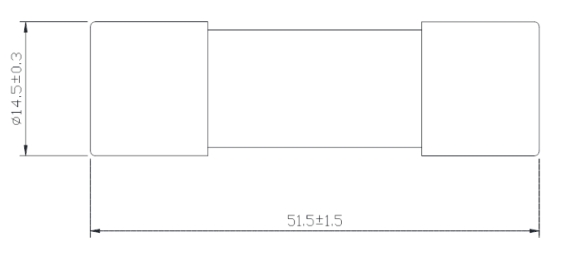

All electrical tests are conducted at ambient temperature of 30℃±3℃. The ambient temperature is not allowed to vary more than 5℃ during the test, and must be within these limits.
The interrupting capacity should reach the interrupting rated current given in the following table. And after this test, there should be no damage of the fuse-tube or shattering of the caps. After this test, the insulation resistance between the end caps shall be not less than 0.1MΩ.
| Rated Voltage | Rated Current | Breaking Capacity |
| 690V | 1A-63A | DC 50KA |
| Part Number | Current Rating(Ampers) | Energy Integrals I2T(A2S) | Power Loss(W) |
| 14C-2200-G | 20 | 448 | 12.7 |
| 14C-2300-G | 30 | 787.2 | 7.5 |
| 14C-2400-G | 40 | 5484 | 4.44 |
| 14C-2630-G | 63 | 26523 | 7.16 |
Note: The energy integral is the data obtained when testing 400A/630A under 10Vdc. It is normal for the energy integral to have a deviation of ±25%.
